เครนสเกล,ไดนาโมมิเตอร์(Crane Scales,Hanging Scales,Dynamometers),CL

Hanging scales are dynamometers used to measure the force between two objects. The hanging scales offered here, are therefore suitable for measuring the weight force during transport or production processes. We offer both analog and digital dynamometers with different weight ranges from 200 to a maximum of 250,000kg.

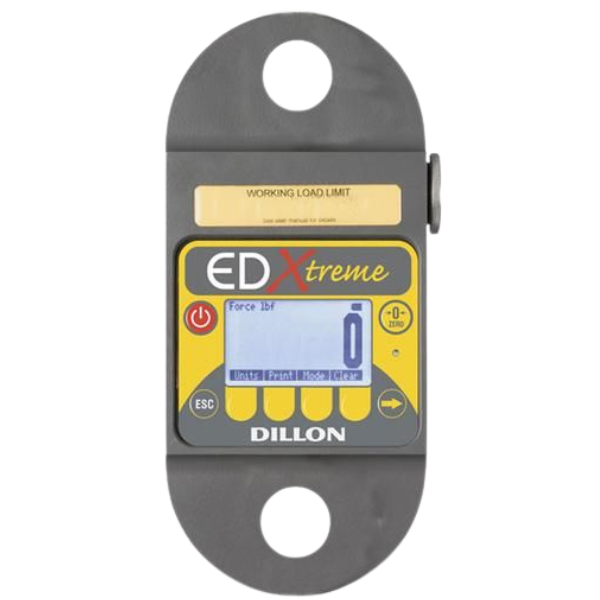

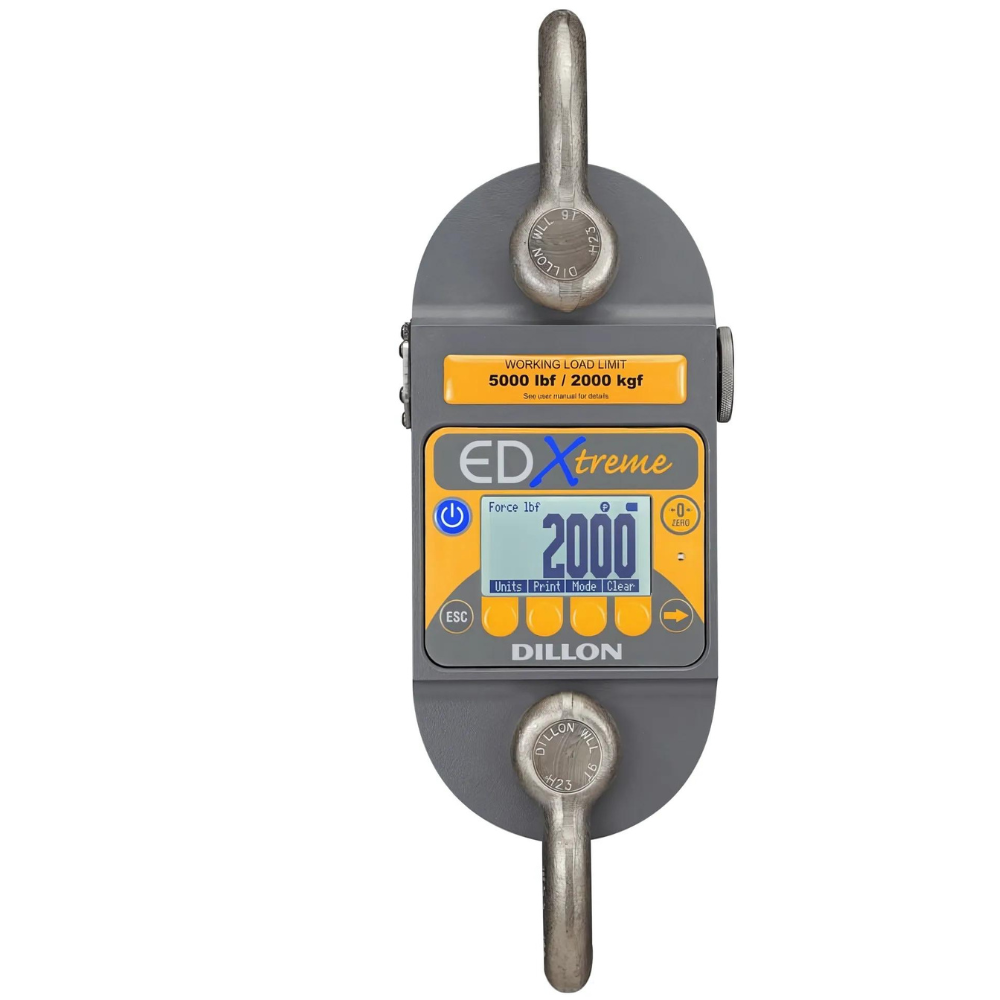

The heavy-duty EDXtreme series offers you additional added value in the form of an optional remote signal for up to 5 dynamometers. In difficult-to-see or dangerous situations, you can use the remote to view the data from a safe distance and also enable the data to be further processed on a computer.

• NIST Traceable Certificate Included
• Accuracy: ± 0.5% of full scale capacity for precise data.
• Broadest range of capacities and resolutions are certain tfo fit your needs
• Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
• Largest safety factor for overload protection and long life
• No batteries required
• Dial size choice for best in portability or visibility

Anti-parallax dial and pointer produce accurate readings from any perspective ,Maximum hand retains peak load point and is easily reset,High strength case resists heavy blows,Generous shackle openings mate with most hooks and hardware,High specification materials on all load components. Heat treated to tight tolerances,Newton capacities available upon request. Consult factory for information.

• NIST Traceable Certificate Included
• RS232 or USB Output
• Capacities from 2,500-550,000lb (1,000-250,000kg)
• 0.1% accuracy
• NEMA6P/IP68 rated housing is protected against continuous immersion in water.
• High strength case resists heavy blows
• Largest safety factor for overload protection and long life
• Generous shackle openings mate with most hooks and hardware
• Optional Radio-ready option connects EDX to the EDX-COMM-II Remote Indicator (Standard on 50T and higher models)

• 0.1% Accuracy Full Scale
• Capacities from 2,500-25,000lb (1,000-10,000kg)
• All models include 2 shackles that mate with most hooks and hardware
• Peak Capture Rate of 10Hz/100Hz/1000Hz (user-selectable)
• User-selected units of measure LbF, Kg or N
• 7:1 safety factor for overload protection and long life (5:1, EDX-10T)
• Housing is rated 6P/IP68, designed for use in the harshest environments
• Backlit LCD Display for easy readability in all lighting conditions
• Includes Hard-Plastic Carrying Case
• Uses 2x C-size Alkaline Batteries for 400+ hours of operation
• CE Certified
