InfReC

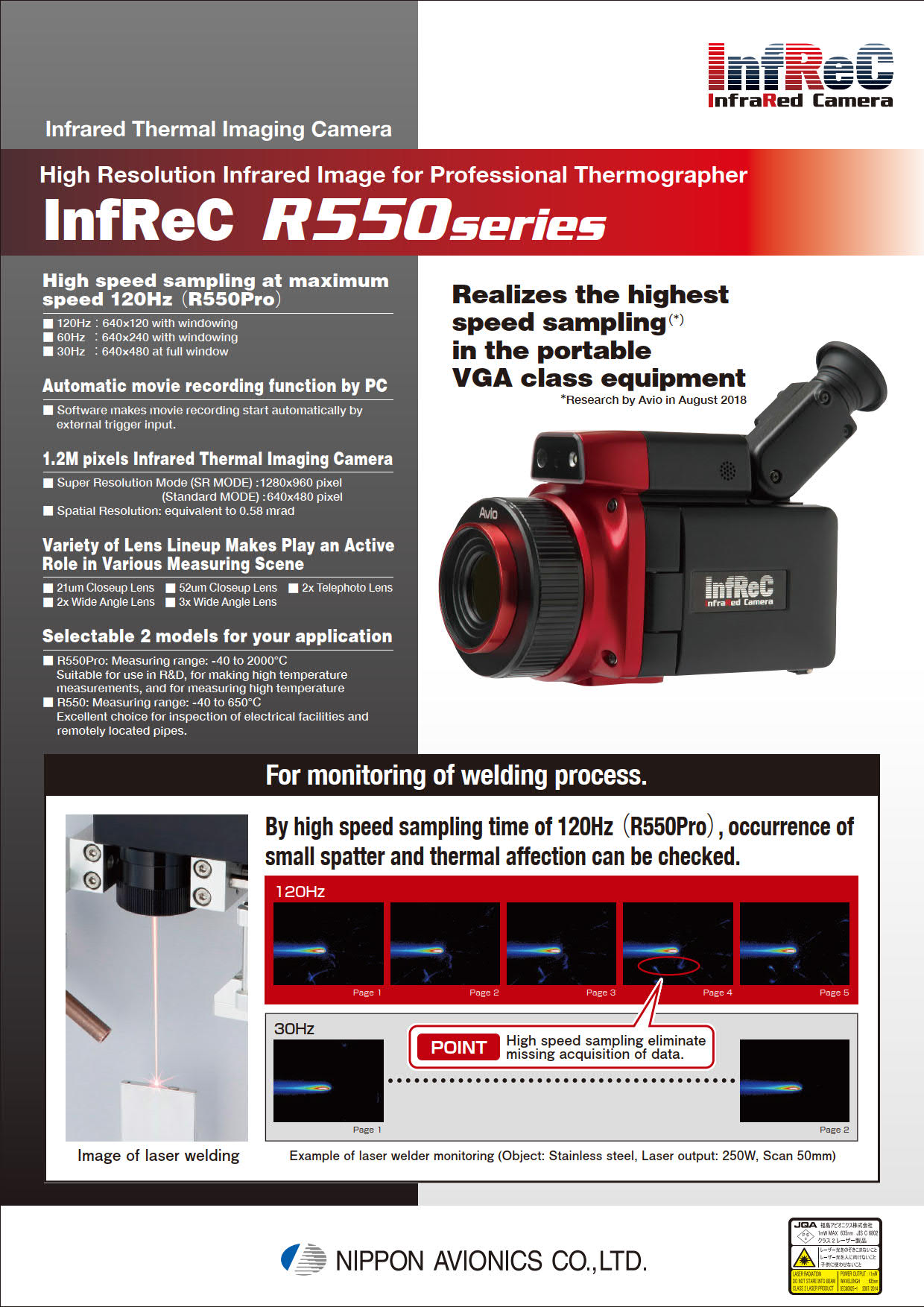

Infrared thermography camera (InfReC R550 series)
Basic information
Fastest sampling for portable VGA class! High-performance high-pixel all-round model
The “InfReC R550 Series” supports a variety of scenes with a high-resolution thermal image with a maximum recording pixel number of 1.2 million pixels and a rich lens lineup. In addition, R550Pro is capable of high-speed sampling at 120Hz.
- Model number
- InfReC R550 series
- price
- Please contact us
- Release date
- Now on sale
Features of infrared thermography camera
Three types of models that can be selected depending on the application and the measurement temperature range

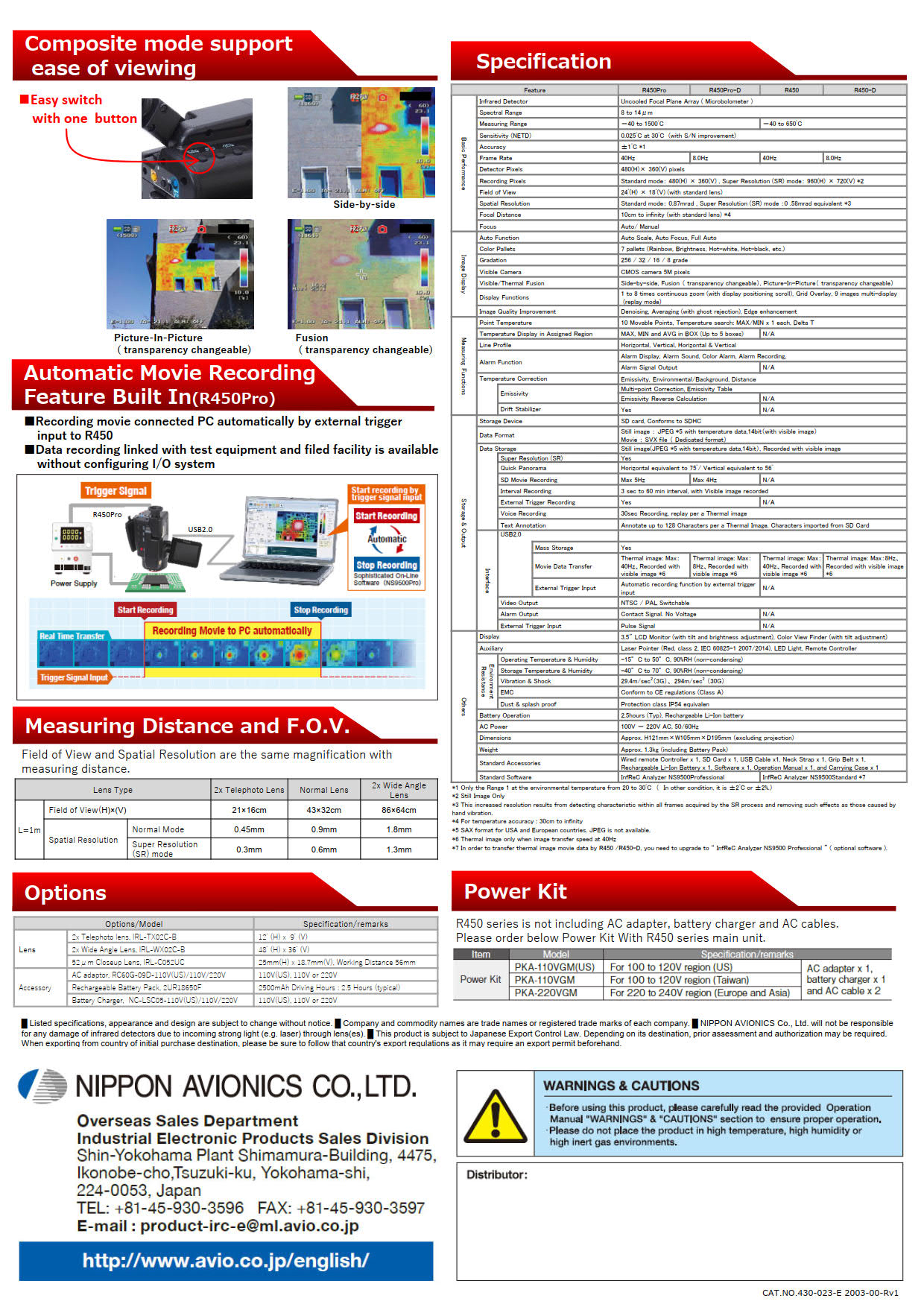

There are three types of models that can be selected according to the application. Refer to the specification table in the catalog for detailed specifications.
| R550Pro | Full-function R & D model |
R & D field that measures time series data, For microelectronic parts with fast thermal behavior, metal welding, etc. Ideal for high temperature measurement. |
Measurement temperature range -40 ～ + 2000 ℃ |
| R550 | R & D, equipment diagnosis model |
For high-altitude electrical equipment and plant piping Ideal for inspection. |
Measurement temperature range -40 ～ + 500 ℃ |
| R550S | Structure diagnosis model |
Concrete structures and building exterior walls Ideal for peeling diagnosis. |
Measurement temperature range -40 to + 120 ° C |
High-speed sampling up to 120Hz (R550Pro)
Windowing mode enables high-speed shooting up to 120Hz.
You can check the spatter behavior during laser welding and resistance welding and analyze the thermal effects on nearby areas.
- 120Hz: 640 × 120 windowing
- 60Hz: 640 × 240 windowing
- 30Hz: At 640 × 480 fulling
High-definition thermal image with a maximum recording pixel number of 1.2 million pixels
Multi-resolution super-resolution processing achieves the highest class of resolution for an uncooled thermography camera.
- Super resolution (SR) mode: 1280 x 960 pixels Spatial resolution: equivalent to 0.58 mrad * 1
- Normal recording mode: 640 x 480 pixels Spatial resolution: 0.87mrad
* 1 When combining multiple images properly by extracting features due to the effects of camera shake etc.
New automatic recording start function by external trigger input * 2
Reliable data recording linked with test equipment and on-site equipment is now possible.
- When an external trigger signal is input to the camera body, the analysis software on the PC automatically starts movie recording.
- Data recording linked to test equipment and on-site equipment can be performed more easily without building a system using I / O equipment.
* 2 R550Pro only
Temperature resolution is further improved by the latest image filtering function (de-noise)
- Equipped with the latest noise processing technology developed by NEC Central Research Laboratory. Spatial filtering reduces random noise while keeping the outline of the measurement object clear.
- Achieves a temperature resolution of 0.025 ° C (at 30 ° C), making it ideal for non-destructive inspections that want to capture small temperature differences clearly.
Abundant lens lineup for various scenes
The optional lens enables clear measurement from wide-angle to micro.
Proximity magnifying lens for temperature measurement of minute objects that cannot be measured with a thermocouple
